ROTARY DIE STORAGE

Double rotary die trolley


Safe and efficient transport of rotary dies between storage and production.


The bcm trolley for rotary die is constructed to ensure a safe and efficient transport of the dies between the storage and the converting lines in the production. They can be designed to fit the customer’s requirements and built to contain both cutting dies, flexo stereos/printing plates and ink buckets so the operator can reduce the transportation time between storage and production. Specifically, the operator has easy access to all the tools, so that the trolleys can be efficiently loaded and unloaded.


Contact bcm to design a customized trolley for your storage.

trolley for double rotary dies can contain up to 6 dies


Product description

The trolley for rotary die with drawers is easy to operate and perfect for mobilator handling. It is easy to move due to durable and light weight construction of uni-profiles. It contains your entire production set of rotary dies in one unit for safe, simple and efficient handling. The trolley has large rubber wheels with front-mounted brakes to ensure stable and safe operation. Uni-profiles are maintenance-free and easy to keep clean. One version transports single dies, storing 4 dies. A second version transporting double dies, storing 3 sets.


The rotary die trolleys with standard shelves can fit any rotary die with an inside diameter of 177 – 487 mm.


The trolleys are supplied unassembled but can be assembled at an additional cost.


​​​​​​​


Die length below 2.5 m ​​​​​​​

Item number: 5001585


  • Width:  680 mm


  • Lenght:  2000 mm


  • Height: 1735 mm


  • Number of dies:  6




Die length above 2.5 m

Item number:5007211


  • Width:  680 mm


  • Lenght:  2500 mm


  • Height: 1735 mm


  • Number of dies:  6

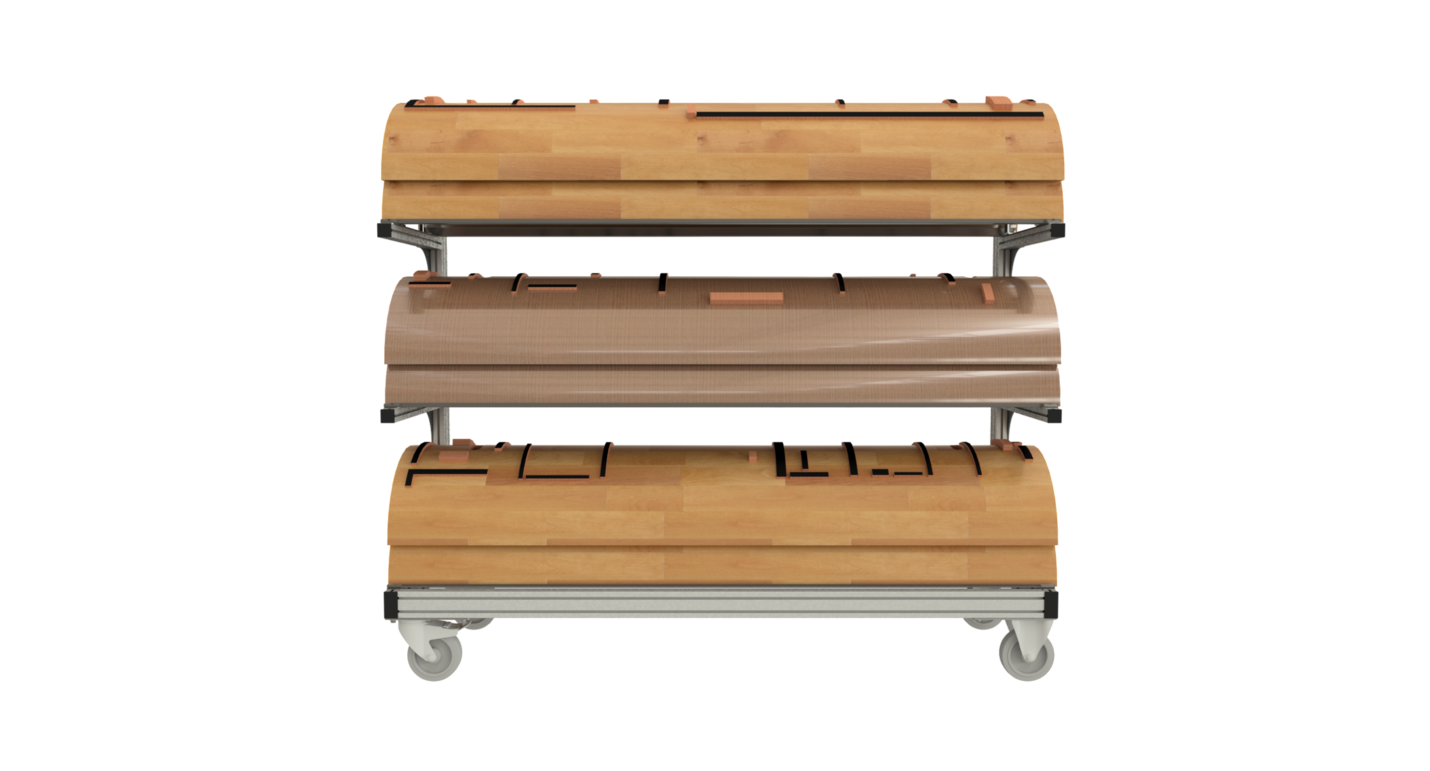

front view of trolley for double rotary dies can contain up to 6 dies

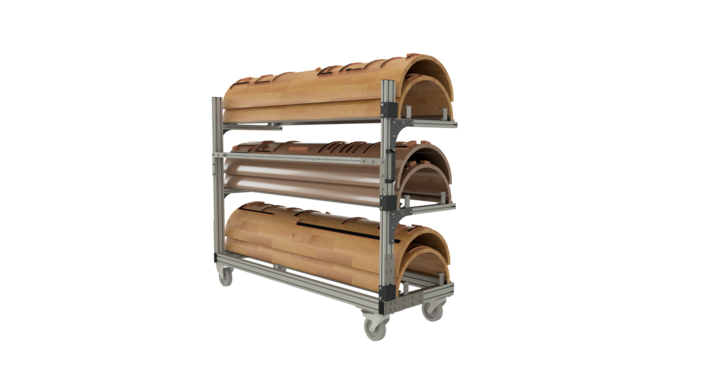

back view of trolley for double rotary dies can contain up to 6 dies

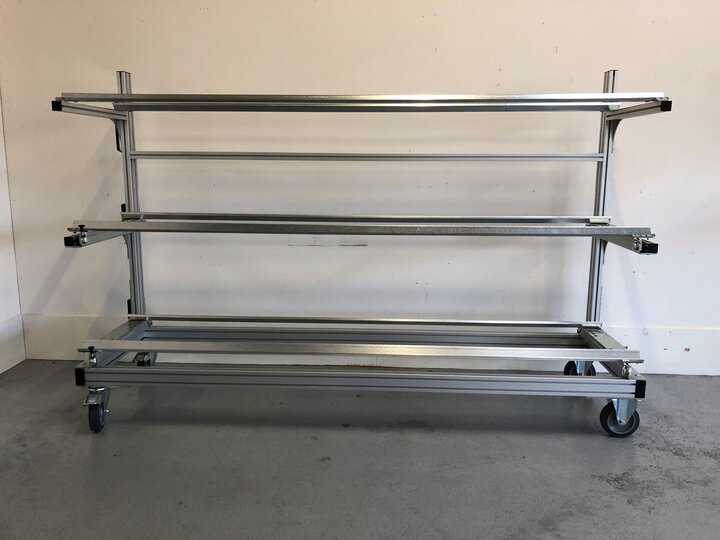

Empty trolley for double rotary dies
