FLAT BED DIE / PRINTING PLATE STORAGE

PrimeStorage FP2, T-type


The bcm PrimeStorage is the most sold storage system in the corrugated industry and its popularity is easy to understand. Our customers receive an effective and well-organized storage system where dies and printing plates can be sorted in almost endless combinations. Furthermore, the bcm PrimeStorage is easy to operate and its value for money is extremely high.


With an overhead-mounted manually operated crane, this manual double rack storage for flatbed dies and printing plates is useful if requiring a lot of capacity but without taking up too much space. The storage can be placed anywhere in the factory and can have most sizes and combinations of dies and printing plates. After use, the operator can “park” the crane higher up in the storage to permit free passage in the aisle of the storage racks if needed.

manual double rack storage for flatbed dies and printing plates


Product description


Compared to the single rack F-type storage, the double rack T-type manual flatbed die storage with printing plates has a capacity increased by 100%, while the storage space requirements only grow by 50%. The tools can also be delivered into the trolleys in more locations, as this T-type crane can rotate 360 degrees.


The storage structure is built mainly from galvanized steel. The crane and the crane rails are a combination of aluminum, galvanized steel and powder-coated steel. The monitor has two cameras — an upper and a lower — to support the operator while operating the crane.


The operator can move the crane manually and, at the same time, drive the sleigh with the cassette gripper up and down in a vertical direction. This is time-saving, making operation of the crane efficient, especially with high storages


The bcm PrimeStorage FP2, T-type can be combined with printing plates. The printing plates are placed in the lowest level of the storage and handled manually without using the crane. This storage is also available with rotary dies that can be connected to the flatbed die handling device with an attachable rotary die gripper device. See more bcm PrimeStorage FRP2, T-type.


The trolleys for the storage are on wheels and designed to contain 3 cassettes as standard. Each cassette contains all plates needed for one full set of production dies (cutting die, stripping die, guillotine board and printing drawing). The trolleys are easy to handle and push by one person. When entering the storage area to pick up the cassettes with dies, the operator only needs to bring the trolley with them, reducing the moving time of the crane significantly. There will be a separate trolley for handling and transporting the printing plates.











Item number: 5031249


  • Tools 1: Flat bed dies in cassettes


  • Tools 2: Printing plates / stereos / Clichés


  • Color:  Traffic blue (RAL 5017)


  • Levels: 2-7​​​​​​​*


  • Height:  3-10 meters


  • No. of racks: One single rack only


  • Software options:  None


  • Automation level: Manual

*Dependent on the printing plate size


​​​​​​​

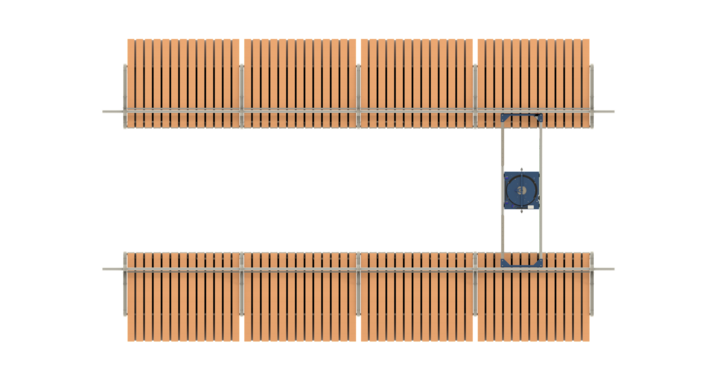

Top viewof manual double rack storage for flatbed dies and printing plates

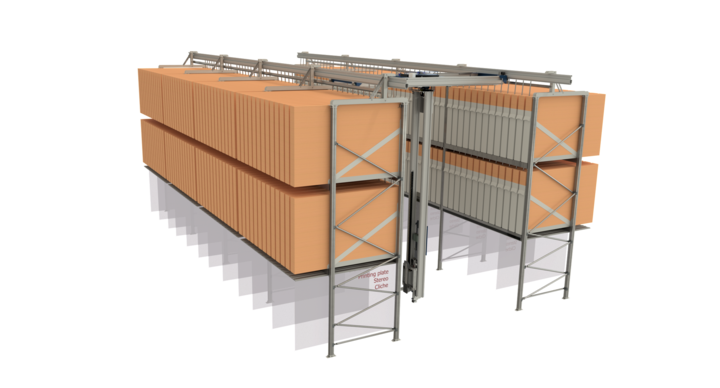

Side view of manual double rack storage for flatbed dies and printing plates
front view of manual double rack storage for flatbed dies and printing plates
