CASE VPK

bcm Mobilator for

heavy die lifting



"​​​​​​​

  VPK Raamsdonksveer optimises its factory’s safety and efficiency with new cutting die handling solution

Over the years, the Dutch packaging company, VPK Raamsdonksveer, have invested strongly in cutting-edge technology

and production equipment to optimise their factory, so that they can keep up with the growing customer

demand for short-term deliveries and enhanced quality of finished goods.





Over the years, the Dutch packaging company, VPK Raamsdonksveer, have invested strongly in cutting-edge technology and production equipment to optimise their factory, so that they can keep up with the growing customer demand for short-term deliveries and enhanced quality of finished goods.  ​​​​​​​

Challenges


Besides improving the factory’s efficiency, the company also focuses on the health and safety standards for its operators. The combination of wanting to optimise the operators’ safety and efficiency paved the way for a new flat bed die handling solution, so the operators could be relieved from heavy lifting when placing the heavy flat bed dies on the preparation table by hand during setup of the converting machine.


“Health and safety concerns are very important to us, so we contacted our long-term business partner, bcm transtech, which specialises in storage and handling solutions for the corrugated and folding carton industry. We have previously experienced how their storage for flat bed dies and flexo stereos optimised our storage process, so we were confident that they could come up with the optimal solution to fulfil our cutting die handling need,” explains Renato Mediati, Technical Manager at VPK Raamsdonksveer.

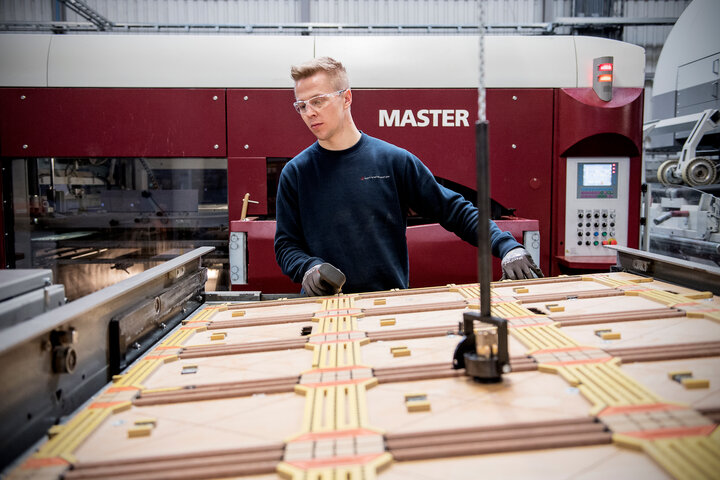

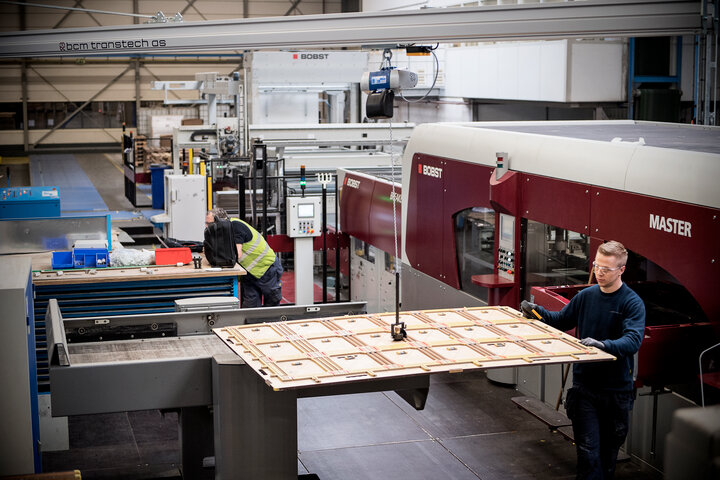

bcm operator using the bcm mobilator for flatbed dies

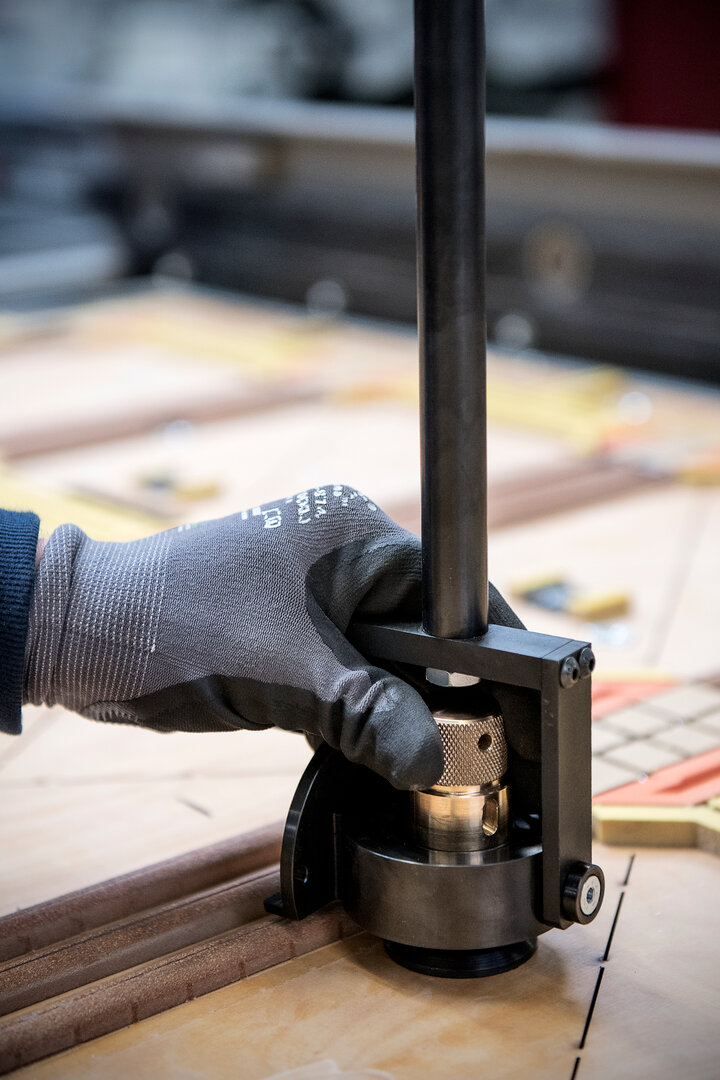

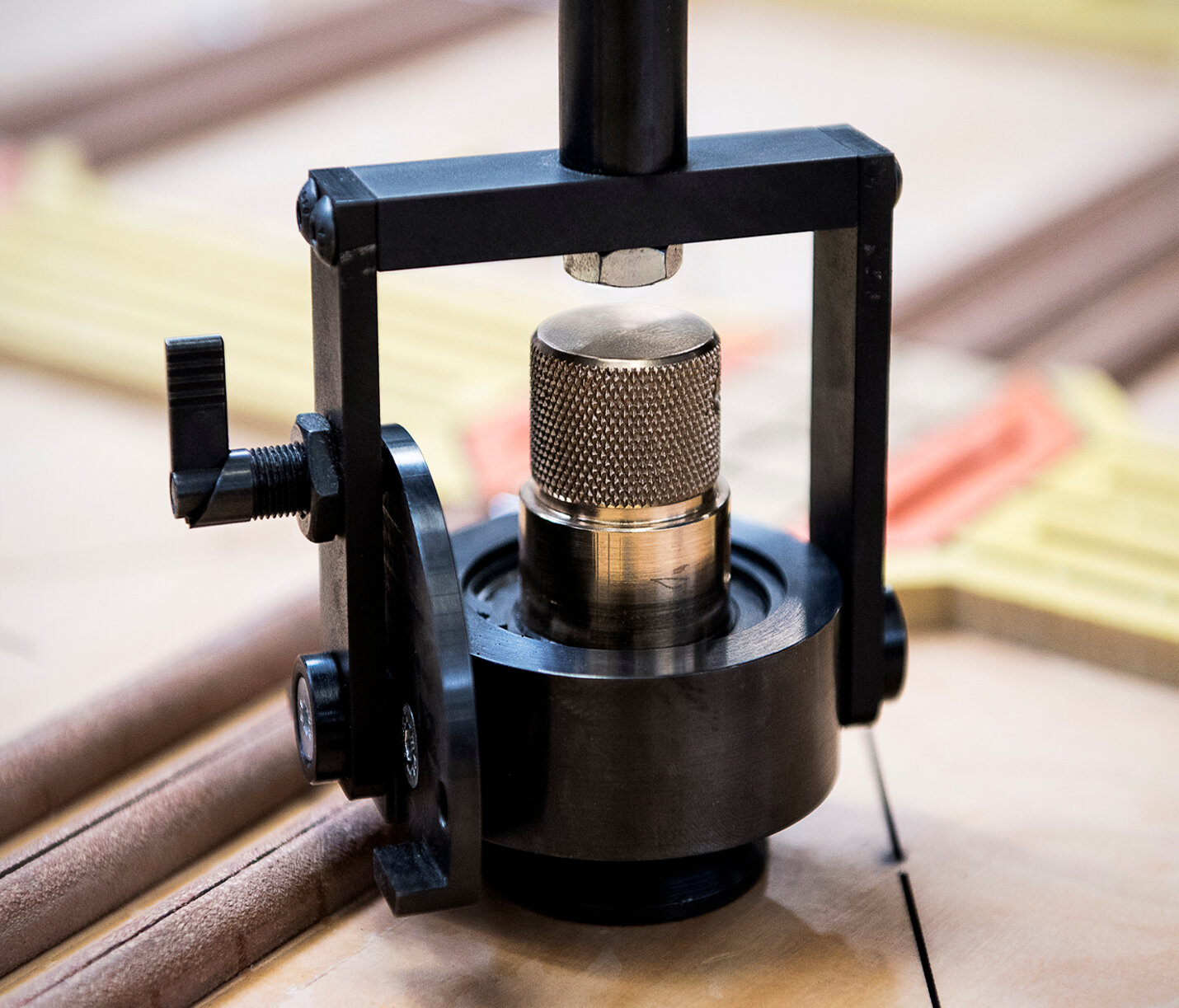

Gripper for bcm Mobilator for flatbed dies

Cutting die handling solution


In order to fulfil the cutting die handling need, bcm transtech designed, manufactured and installed a flat bed die Mobilator, which consists of a modified jib crane that is mounted to the factory’s concrete floor. It required minimum floor space and was constructed to fit the factory’s layout, so that it is easy, safe and efficient for the operators to handle the flat bed dies between the transport trolley and the converting machine.


“Our Mobilator can easily be connected to the threaded insert in the cutting and stripping tools and lifted via a wireless remote control for optimal operator comfort. Specifically, the operator has complete control over the process of changing flat bed dies, because they can be rotated 360 degrees horizontally and 180 degrees vertically, as well as being locked in a horizontal or vertical position, so that it is easy, efficient and user-friendly to change flat bed dies,” explains Torben Christiansen, CEO at bcm transtech.


“The Mobilator has optimised our health and safety standards by making it possible for one operator to safely and efficiently change the heaviest cutting and stripping tools single-handedly without breaking the health and safety regulations for heavy lifting,” adds Renato Mediati, Technical Manager at VPK.

Benefits


The new Mobilator optimised the health and safety standards by making it possible for one operator to change the heaviest cutting and stripping tools single-handedly without heavy lifting. In addition, the factory benefited from a decreased risk of accidents and damage to the flat bed dies and the operators, as well as increased workplace efficiency, because the process of changing heavy flat bed dies no longer required multiple operators.


“We have been very pleased with the project from design to installation. Especially, bcm transtech’s abilities, experience and knowhow have been valuable assets in delivering the optimal solution for our need. The Mobilator was delivered on time and customised to fit our requirements. We have been so satisfied with it that we have decided to order one more,” concludes Renato Mediati, Technical Manager at VPK Raamsdonksveer.​​​​​​​

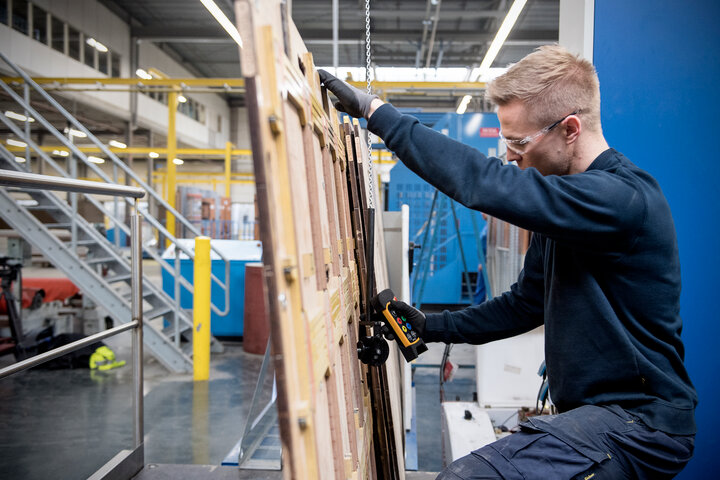

bcm operator illustrates the use of the bcm Mobilator for flatbed dies
bcm operator illustrates the use of the bcm Mobilator for flatbed dies
